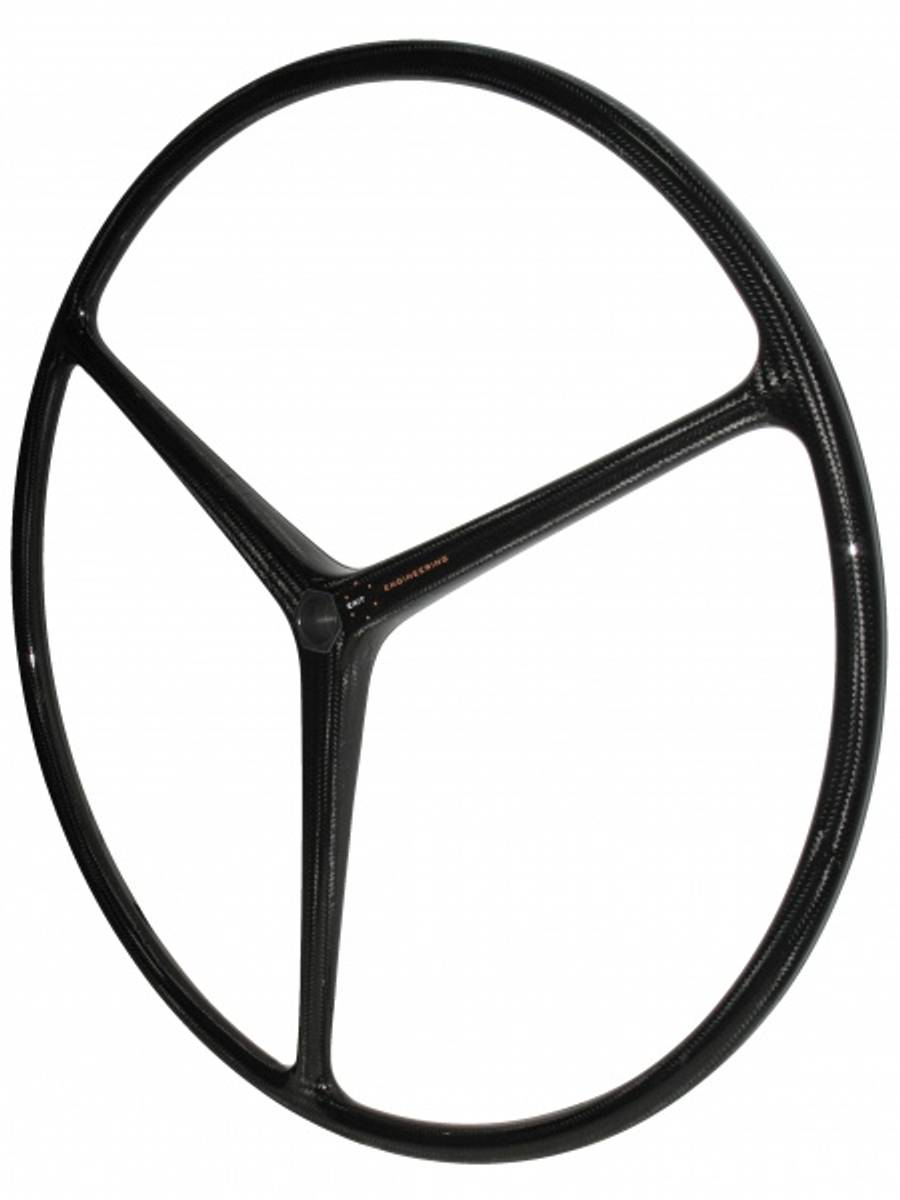

Carbon ratt fra Exit Carbon

Art.nr: exit-1000

NOK 35.000,-

Rattene fra Exit Carbon er ekstremt lette og solide. De blir bygget i ett stykke med state of the art teknologi og de beste materialer. Det benyttes en autoclave med 7 bar trykk og 120° C. Ratt med følgende diameter er tilgjengelige: 935 mm, 1050 mm, 1200 mm, 1640 mm, 1720 mm og 1840 mm. Rattene bygges med senternav tilpasset den aktuelle produsent av styresystemet. Rattene produseres i Italia etter bestilling. Regn ca 4-6 ukers leveringstid. Vi tar kontakt for å finne riktige dimensjoner og utforming på navet.

  Ø 935mm Ø 1050mm Ø 1200mm Ø 1640mm   Ø 1720mm Ø 1840mm
Vekt* 1.340 kg 1.520 kg 1.750 kg 3.180 kg 3.280 kg 3.680 kg
Hub tykkelse 60 mm 60 mm 60 mm 60 mm 60 mm 60 mm
Ratt tykkelse 35 mm 35 mm 35 mm 40 mm 40 mm 40 mm

* Vekt av hub kommer i tillegg, ca 200g.

Exit Carbon steering wheel is ideal for anyone looking for a more responsive helm, light steering loads and enhanced comfort without sacrificing strength.

Its wide section, three spoke design is a major step ahead in carbon fibre marine equipment production.

Built with Exit Engineering's patented continuous shell method, the wheel comes out of the mould in one piece, so there is no gluing of separate parts nor kevlar in it (Patented Wheels EP 1 755 869 B1).

The result is a single, hugely strong piece of autoclave cured prepreg carbon fibre at high temperature (7 bar) and high pressure (120° C).

The wheel design received the Design Award METS. European Patent 1755869B1
Each wheel is then individually tested with a force at least 50% higher than the worst case certification load.

Key features
100% carbon fibre pre-preg fabrics

Autoclave curing (120° / 7 bar)
Pre-preg carbon fiber female moulds
Finite Elements structural analysis
Entirely made in Italy

The wheels are supplied with the appropriate hub for the steering system fitted aboard and they are easy to install. We invite you to have a look at the Videos and Photos on www.exitcarbon.com
