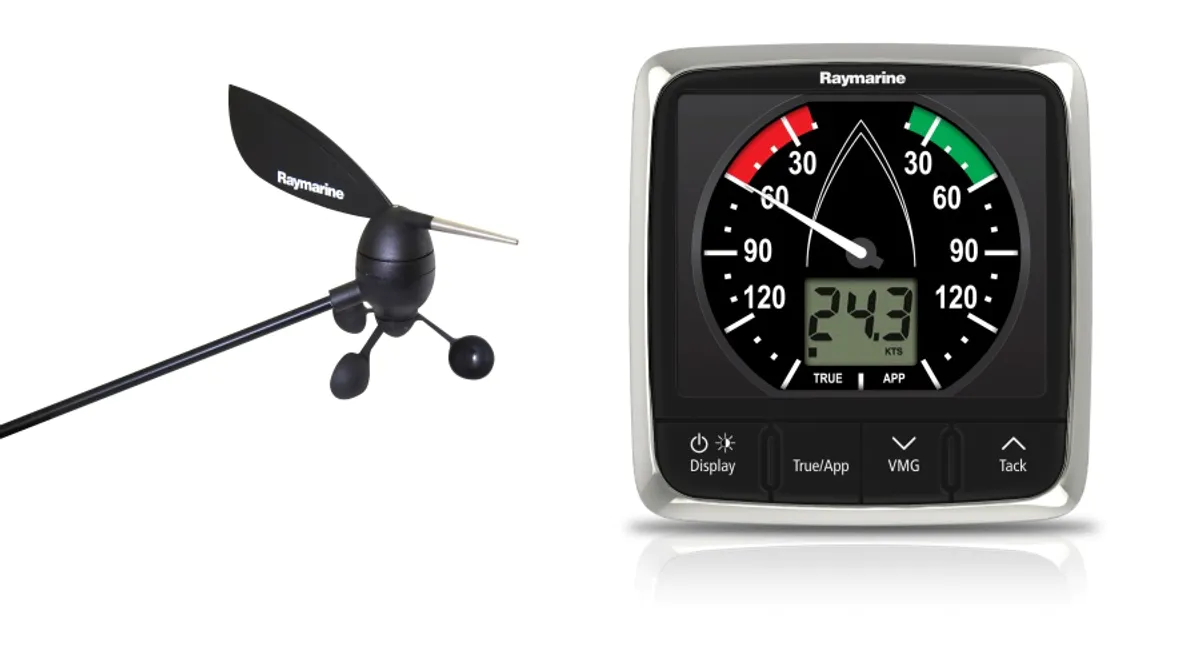

Raymarine vind system

• Displays Analog Wind speed, direction, Beaufort, max wind speed, VMG, and tack
• The i60 Wind system comes with the short arm masthead with 30 meters or about 95 feet of cable
• The i60 instruments are designed to complement the all new Raymarine cSeries and eSeries multifunctional displays
• Fits Raymarine ST60+ Footprint
• Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use
• They are also simple to install thanks to the front-mount design
• Large analogue dials
• Red backlighting for improved visibility
• SeaTalk and SeaTalk ^ng interfaces NMEA 2000 (compatible) interface
• Built-in transducer interface
• 110 mm x 115 mm footprint identical to older Raymarine ST60+ instrumentation
• Large controls for ease of use at sea
• Low power consumption
• Multiple data source support eliminates potential data conflicts
• Front mounted design for simple installation

Specifications:

• Nominal Voltage: 12 Volt DC
• Operating Voltage Range: 10 - 16 Volt DC
• Power Consumption: Typically
• Current Consumption: 45 to 65 mA (display only) and 200 mA maximum with transducer connected
• Operating Temperature range: -20º C to +55º C
• Storage Temperature: -30º C to +70º C
• Relative Humidity: Up to 93%
• Waterproofing Standard: IPX6
• Connections: (2) SeaTalk ^ng and transducers
• Conformance: Europe 2004/108/EC
